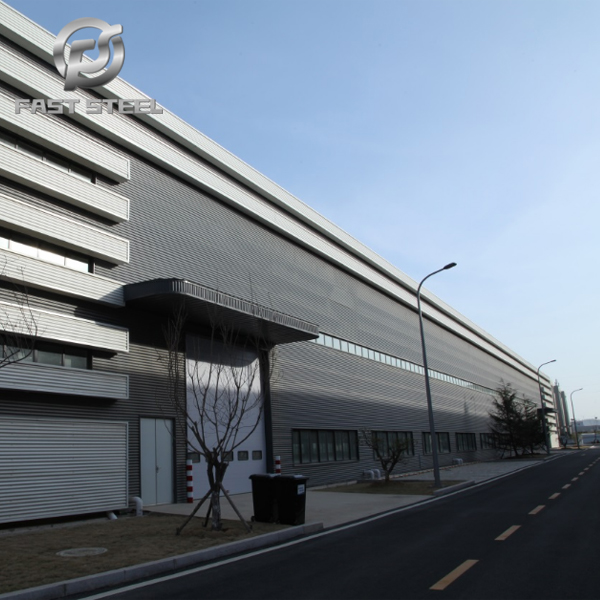

Steel structure workshop manufacturer

Delivery time: 15-30days
Price term:EXW,FOB,CIF,CFR,CNF,etc.
Payment:L/C,T/T,Western Union,etc.
Port Delivery:Qingdao, Shanghai, Tianjin, Shenzhen,etc.
We can provide customized products in different materials and sizes to meet different needs.
Description
Description

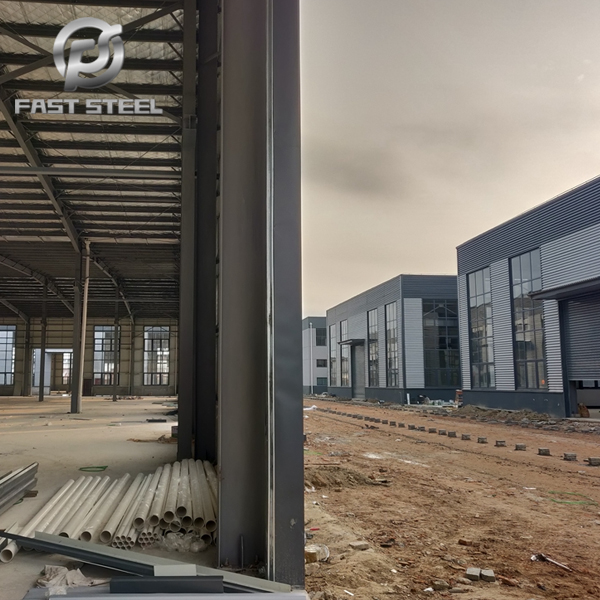

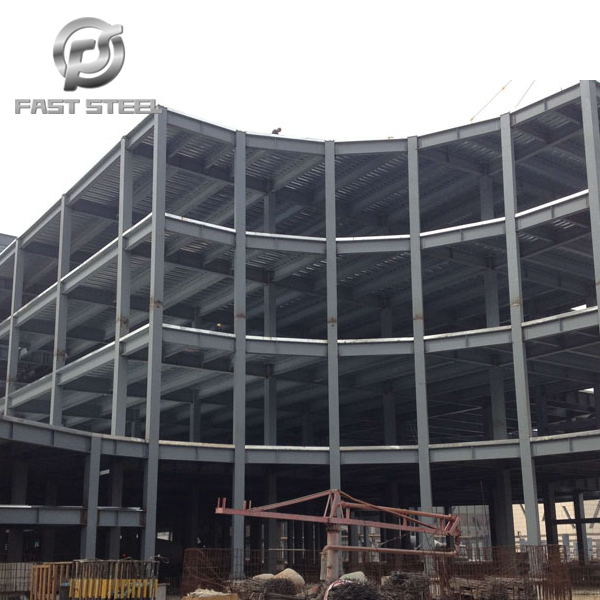

Steel structures are manufactured from steel plates, hot-rolled steel or cold-formed thin-walled steel. Compared with structures made of other materials such as concrete, steel structures have many advantages. First of all, steel has high strength, good shape and toughness. High strength makes it suitable for frames and structures with large spans or heavy loads, and good shape and toughness make these structures more adaptable to dynamic loads and will not break due to sudden overloading. Mainly used for load-bearing skeleton of heavy workshop, workshop structure subjected to dynamic load, plate and shell structure, towering TV tower and mast structure, bridges and warehouses and other large-span structures, high-rise and high-rise buildings, etc.





Main Steel Frame

H section steel

Q345 steel 8mm/10mm



Welding

Automatic submerged arc welding



Rust removal

Sand blasting



Surface processing

Alkyd paint or galvanized



Intensive bolt

Grade 10.9

Supporting System

Angle brace

L50x4,Steel Q235, processed and painted



Cross support

Φ20, Steel Q235, processed and painted



Belt bar

Φ89*3, Steel Q235, processed and painted



Small brace

Φ12,Steel Q235, processed and painted



Ordinary bolt

Galvanized bolt

Roof

Purlin

C160*60*2.5,Steel Q235, galvanized and painted



Outer-roof panel

Sandwich panel or corrugated steel plate



Transparent lighting panel

6mm thick PVC



Accessories

Glass cement, self-tapping screws, etc.



Edge cover

Made from 0.5mm thick, colored sheet steel



Gutter

Made from 0.8mm thick sheet steel



Rainspout

Φ110PVC

Walls

Purlin

C160*60*2.5,Steel Q235, painted



Wall

sandwich panel or corrugated steel plate



Accessories

Glass cement, self-tapping screws, etc.



Edge cover

Made from 0.5mm thick, colored sheet steel



Axial fan

Axial fan



Doors & windows

Rolling door/sliding door PVC/alu/steel window





1. A mark should be set at the end of the steel, and the specification, steel number, quantity and material acceptance certificate number of the steel should be indicated;
2. When stacking in the open air, the site should be level and higher than the surrounding ground, and there should be drainage ditches around;
3. When stacking, the back of the steel structure steel profiles should be upward or outward as much as possible to avoid snow and water accumulation, and there should be a height difference between the two ends to facilitate drainage.
4. The construction unit shall conduct special inspections on product qualification certificates, design documents and pre-installation records of parts and components before construction, and re-examine and record the dimensions of parts and components;






5. The steel structure should adopt an appropriate connection method, so that the joint design is consistent with the simplified structural calculation model;
6. When hoisting the steel structure, appropriate measures should be taken to prevent excessive bending and torsional deformation, and the contact part between the rope buckle and the component should be padded accordingly to prevent the component from being damaged due to knocking;
7. After the steel structure is hoisted in place, the supports and other connectors should be fixed in time to ensure the stability of the structure.
