Home > Steel Structure Workshop > Steel structure plant

Description

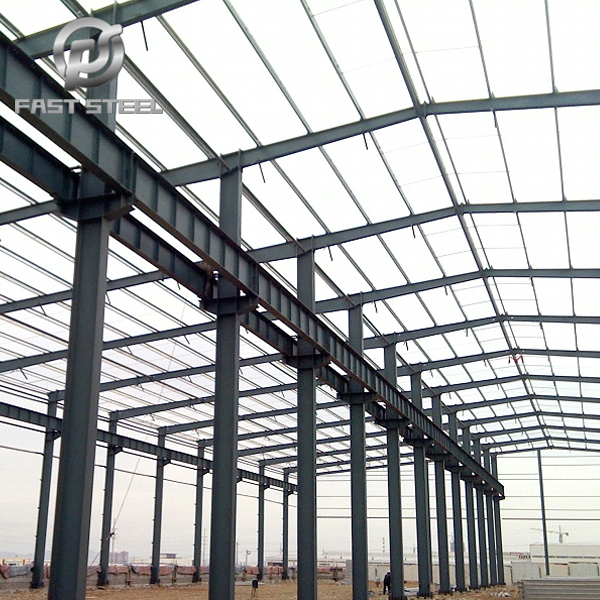

Steel structure workshop can be applied to factories, warehouses, office buildings, gymnasiums, hangars and more. It is not only suitable for single-storey large-span buildings, but also can be used to build multi-storey or high-rise buildings. All of them use high-efficiency energy-saving walls, which have good thermal insulation, heat insulation and sound insulation effects, and can reach 50% of the energy saving standard. All use high-efficiency and energy-saving walls, which have good thermal insulation, heat insulation and sound insulation effects, and can reach 50% of the energy saving standard.

Name	Steel structure warehouse
H beam Dimensions	Length	4000-15000mm
	Thickness	web plate: 6-32mm wing plate: 6-40mm
	Height	200-1200mm
	Color	According to customers
	Warehouse Size	Width * length * eave height
Advantages	1. Lower cost with better quality. 2. High safety performance. 3. Easy to assemble and dismantle. 4. Manufacture under complete quality control system - ISO9001. 5. Installation with instruction of experienced engineers 6. Non-pollution.
Main components	Base	Cement and steel foundation bolts
	Main frame	H beam
	Material	Q235B, Q345B or others as buyers' requests.
	Purlin	C or Z purlin: Size from C120~C320, Z100~Z20
	Bracing	X-type or other type bracing made from angle, round pipe
	Bolt	Plain bolt and High-strenth bolt
	Roof & wall	Sandwich panel or color plate
	Door	Sliding or rolling door
	Window	Aluminium alloy window
	Surface	Two lays of Anti-rust Painting or Hot Dip Galvanized
	Sheet	0.5mm or 0.6mm galvanized sheet
	Accessories	Semi-transparent skylight belts, Ventilators,down pipe, Glavanized gutter, etc
Usages	1. workshop, warehouse, plant 2. Steel web frame structure 3. Steel H-column and steel H-beam 4. Portal frame products 5. High rise building project 6. Others steel structure buildings
Packing	Main steel frame without packing load in 40' OT; Roof and wall panel load in 40' HQ!
Drawing	According to drawings or customers' requirements.
Design Parameters	If you need we design for you, please supply us the following parameter together with detail size: 1. length, width, height, eave height, roof pitch, etc 2. wind load, snow load, raining condition, aseismatic requirements, etc 4. Demands for doors and windows 5. Other information if necessary

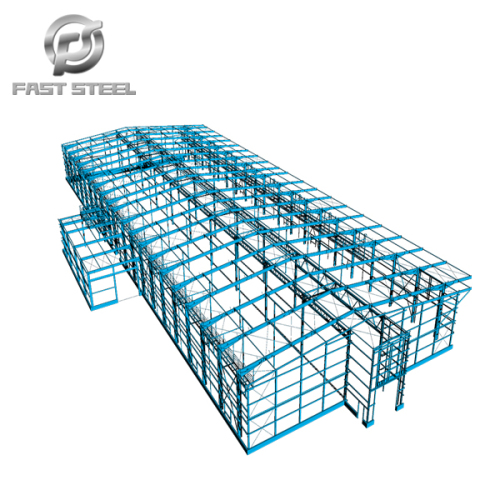

Steel structure workshop components:

Embedded parts: can stabilize the plant structure Column: generally use H-shaped steel, or C-shaped steel (usually use angle steel to connect two C-shaped steels)

Beam: C-shaped steel and H-shaped steel are generally used, (the height of the intermediate product is determined according to the span of the beam) Purlin: usually C-shaped steel, but also channel steel.

Tile: There are two types, the first is a single-piece tile (color steel tile). The second is composite board (polystyrene, rock wool, polyurethane). (There is foam in the middle of the two-layer tiles to keep warm in winter and cool in summer, and also has the effect of sound insulation).

Committed to building a one-stop service platform for integrated construction, relying on advanced production technology, high-quality product quality, complete product categories, and experienced sales and technical service teams, it provides a full range of services for customers at home and abroad.
