Home > Scaffolding System > Scaffolding Ring lock System

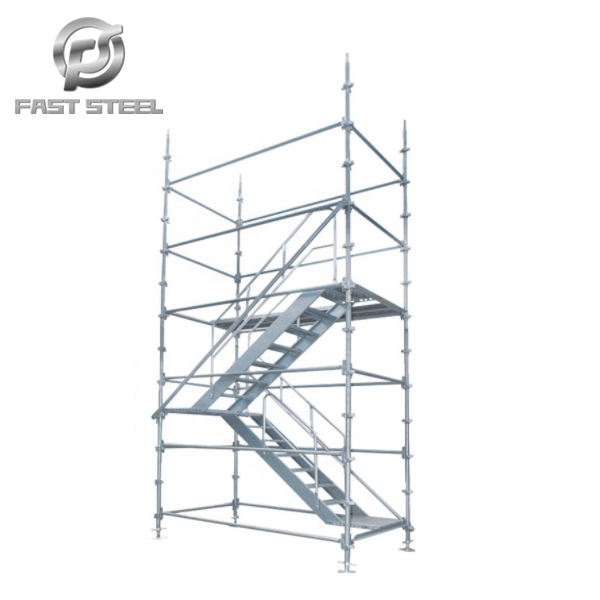

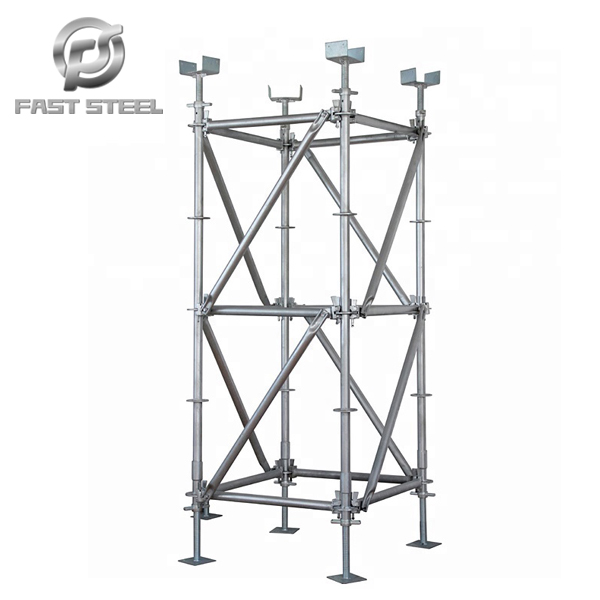

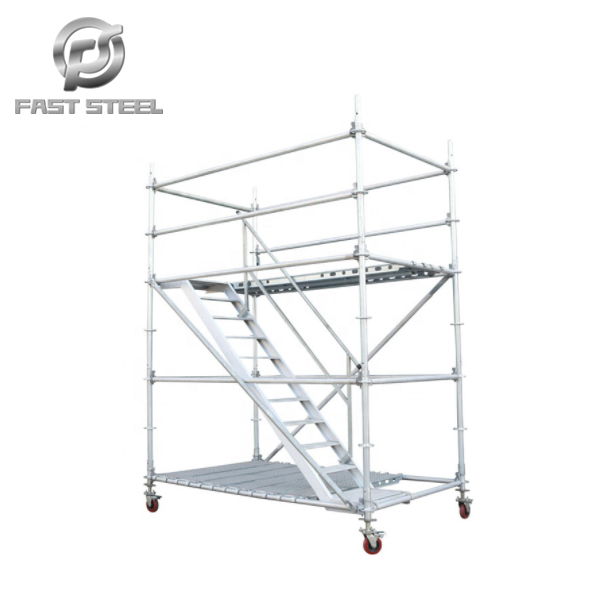

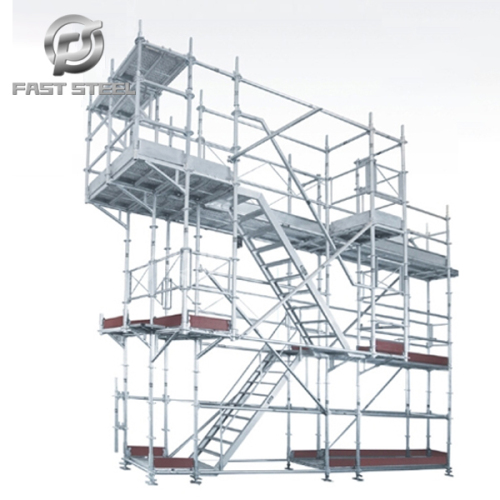

Scaffolding
Scaffolding Scaffolding Scaffolding Scaffolding

Scaffolding

Delivery time: 15-30days
Price term：EXW,FOB,CIF,CFR,CNF,etc.
Payment：T/T,Western Union,L/C,,etc.
Port Delivery：Qingdao, Shanghai, Tianjin, Shenzhen,etc.
We can provide customized products in different materials and sizes to meet different needs.
Request Quote
Description
Description

Safety requirements for the use of Scaffolding: when erecting high-rise scaffolding, all materials used must meet the quality requirements. The technical requirements for the erection of scaffolding should comply with the relevant specifications, and great attention must be paid to the various structural measures that should be set up as required.

Specification

48 Series Standard：

Φ48*3.25*200, Φ48*3.25*500, Φ48*3.25*1000, Φ48*3.25*1500, Φ48*3.25*2000, Φ48*3.25*2500, Φ48*3.25*3000

48 Series Ledger：

Φ48*2.75*250, Φ48*2.75*550, Φ48*2.75*850, Φ48*2.75*1150, Φ48*2.75*1450, Φ48*2.75*1750

60 Series Standard：

Φ60*3.25*200, Φ60*3.25*500, Φ60*3.25*1000, Φ60*3.25*1500, Φ60*3.25*2000, Φ60*3.25*2500, Φ60*3.25*3000

60 Series Ledger:

Φ48*2.75*240, Φ48*2.75*540, Φ48*2.75*840, Φ48*2.75*1140, Φ48*2.75*1440,  Φ48*2.75*1740

Diagonal:

Φ42*2.75*1610, Φ42*2.75*1710, Φ42*2.75*1860, Φ42*2.75*2040, Φ42*2.75*2620, Φ42*2.75*2810

or customized according to demand

Material Standard

Q195 /Q235 /Q345/Q355 etc.

Surface Treatment

Powder Coated/HDG/Painted

Packaging Detail

steel pallet, or packed in bundle

Basic Components

vertical, ledger, diagonal brace, double ledger, side bracket, lattice girder, steel plank, toe board, steel stair, stairway handrail, U transom, U ledger beam, base collar, adjustable base jack.





1. When the frame body is set with the top layer, the height of the outer railing above the top layer should not be less than 1500mm.

2. When necessary, the steel pipe frame shall be equipped with lightning rods, which shall be placed on the four corner poles of the outer frame, and connected to the large horizontal rods to form a lightning protection network, and the grounding resistance shall not be greater than 30Ω.

3. When the scaffold intersects with overhead wires, isolation or wrapping measures should be taken, and safety grounding should be done.

Scaffolding








4. Correct the step distance of the horizontal pole, the vertical and horizontal distance of the vertical pole, and the verticality deviation of the vertical pole shall not be greater than 1/500 of the total height of the scaffold, and shall not be greater than 50mm after each step is completed.

5. The exposed length of the adjustable base adjustment screw rod is not more than 300mm, and the height of the bottom horizontal rod as the sweeping rod is not more than 550mm from the ground.
